NYY Low voltaged Copper Conductor PVC Insulated Power Cable

Taitong Cable in anno 2002 fundata est primarius fabricator aeris conductoris PVC insulatae potestatis cables in Sina voltaged Low. Praefectus in Hejian, Hebei Provincia, societas aream 70,000 m2 operit cum capitali relatus RMB 1 sescenti Post plus quam XX annos stabilis incrementi efficientis, Taitong nunc quattuor modos productio bases per Sinas operatur et conservat 30 officia ramorum nationum.

Mitte Inquisitionem

depictio producti

1.Product Introduction

Taitong aestimavit voltage potentiae distributionis funem, compatible cum aestimata voltages de 1KV (Um=1.2KV) et 3KV(Um=3.6KV), 0.6/1kV NYY Cu/PVC/PVC Low voltaged Copper Conductor PVC Insulated Potentia Cables optima electio erit pro low-voltage potentiae systemata qualia sunt industriae facultates et industriae in retia mercatorum. PVC Insulatus PVC Virtus Cable - Aluminium Conductor PVC/PVC Cable、PVC/PVC Steel Tape armatae Cable、Aluminium PVC/PVC Steel Tape armatae Cable、Copper SWA Armored Power Cable factorum cum conductor materiae, velit stratis ac vaginae, quae in productione speciei emulationis et electrici emolumenta infra ostendunt, stabilia et stabilis emolumenta instrumentorum longam vitam ser- vorum, certa operatione.

Nota: Imago ostendit funerum praedicationem generalem potentiae, titulus vero specificam specificationem significat.

Plenam amplis potentiam funis exempla praebemus, pete nobis pro pluribus optionibus.

0.6/1kV NYY Cable GB:VV - IEC:Cu/PVC/PVC

2.Product Specifications

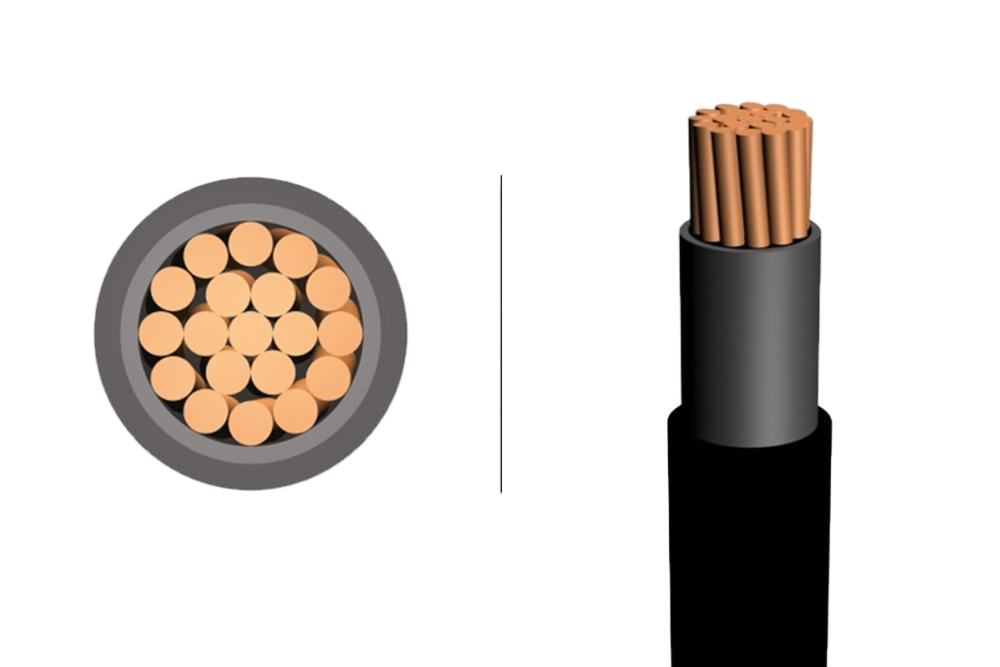

0,6/1kV-1 nucleus conductor aeris PVC insulatas PVC vaginantes funem
No. metretas et nominal sectionem crucis	Crassitudo Insulation	Crassitudo Vagina	Proxime. altiore Diameter	Proxime. pondus	Maximilianus. DC resistentia conductor（20℃）	Vena portandi facultatem
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air (A)	In terra (A)
1X10	1.0	1.4	8.6	159	1.83	55	84
1X16	1.0	1.4	9.6	225	1.15	74	110
1X25	1.2	1.4	11.2	321	0.727	95	135
1X35	1.2	1.4	12.2	418	0.524	115	165
1X50	1.4	1.4	13.6	552	0.387	140	195
1X70	1.4	1.4	15.5	754	0.268	180	240
1X95	1.6	1.5	17.7	1020	0.193	220	290
1X120	1.6	1.5	19.1	1268	0.153	255	325
1X150	1.8	1.6	21	1584	0.124	295	370
1X185	2.0	1.7	23.3	1942	0.0991	340	420
1X240	2.2	1.8	26.2	2514	0.0754	405	485
1x300	2.4	1.9	29	3127	0.0601	470	550
1x400	2.6	2	32.3	4054	0.047	550	630
1x500	2.8	2.1	36.2	5164	0.0366	635	715
1X630	2.8	2.2	40	6431	0.0283	735	820
0,6/1kV-2 nucleus conductor aeris PVC insulatae PVC vaginatae funes
No. metretas et nominal sectionem crucis	Crassitudo Insulation	Crassitudo Vagina	Proxime. altiore Diameter	Proxime. pondus	Maximilianus. DC resistentia conductor（20℃）	Vena portandi facultatem
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air (A)	In terra (A)
2X2.5	0.8	1.8	10.9	149	7.41	25	-
2X4	1	1.8	12.7	228	4.61	33	-
2X6	1	1.8	13.7	278	3.08	42	-
2X10	1	1.8	16.2	380	1.83	58	84
2X16	1	1.8	18.4	530	1.15	76	110
2X25	1.2	1.8	21.7	754	0.727	98	140
2X35	1.2	1.8	23.0	962	0.524	120	175
2X50	1.4	1.8	26.4	1274	0.387	145	205
2X70	1.4	1.9	29.7	1724	0.268	185	255
2X95	1.6	2.0	34.2	2333	0.193	230	305
2X120	1.6	2.1	37.2	2886	0.153	265	350
2X150	1.8	2.2	41.2	3601	0.124	305	390
2X185	2	2.4	45.5	4415	0.0991	350	440
0,6/1kV-3 nucleus aes conductor PVC insulatas PVC vaginantes funem
No. metretas et nominal sectionem crucis	Crassitudo Insulation	Crassitudo Vagina	Proxime. altiore Diameter	Proxime. pondus	Maximilianus. DC resistentia conductor（20℃）	Vena portandi facultatem
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air (A)	In terra (A)
3X2.5	0.8	1.8	11.4	184	7.41	21	-
3X4	1.0	1.8	13.3	263	4.61	28	-
3X6	1.0	1.8	14.5	337	3.08	36	-
3X10	1.0	1.8	17.1	495	1.83	49	72
3X16	1.0	1.8	19.5	703	1.15	66	94
3X25	1.2	1.8	23.1	1010	0.727	84	120
3X35	1.2	1.8	24.5	1311	0.524	100	145
3X50	1.4	1.8	28.2	1746	0.387	125	175
3X70	1.4	1.9	31.8	2390	0.268	160	210
3X95	1.6	2.1	36.6	3247	0.193	195	255
3X120	1.6	2.2	39.9	4034	0.153	235	295
3X150	1.8	2.3	44.2	5044	0.124	260	330
3X185	2	2.5	48.8	6191	0.0991	305	370
3X240	2.2	2.7	55.0	8031	0.0754	360	425
3X300	2.4	2.8	60.8	9989	0.0601	410	480

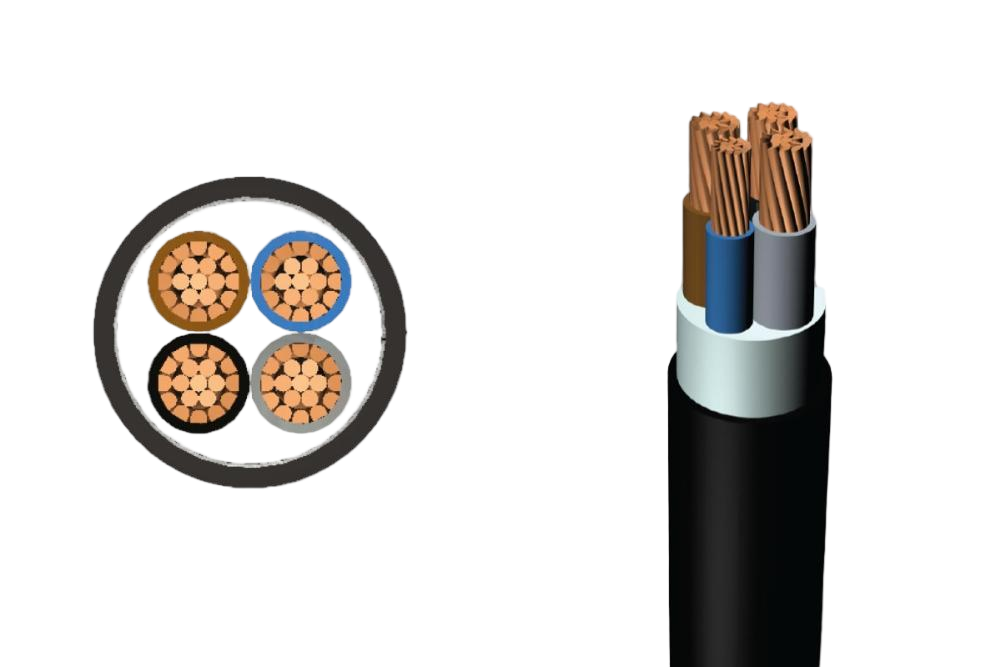

0,6/1kV-4 nucleus aeris conductor PVC insulatas PVC vaginantes funem
No. metretas et nominal sectionem crucis	Crassitudo Insulation	Crassitudo Vagina	Proxime. altiore Diameter	Proxime. pondus	Maximilianus. DC resistentia conductor（20℃）	Vena portandi facultatem
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air (A)	In terra (A)
4X2.5	0.8	1.8	12.3	223	7.41	21	-
4X4	1	1.8	14.4	325	4.61	28	-
4X6	1	1.8	15.7	421	3.08	36	-
4X10	1	1.8	18.7	624	1.83	49	72
4X16	1	1.8	21.3	895	1.15	66	94
4X25	1.2	1.8	25.3	1293	0.727	84	120
4X35	1.2	1.8	26.9	1690	0.524	100	145
4X50	1.4	1.9	31.2	2271	0.387	125	175
4X70	1.4	2.0	35.3	3117	0.268	160	210
4X95	1.6	2.2	40.7	4241	0.193	195	255
4X120	1.6	2.3	44.3	5276	0.153	235	295
4X150	1.8	2.5	49.2	6603	0.124	260	330
4X185	2	2.6	54.4	8111	0.0991	305	370
4X240	2.2	2.9	61.3	10531	0.0754	360	425
4X300	2.4	3.1	67.8	13109	0.0601	410	480
0,6/1kV-5 nucleus aes conductor PVC insulatas PVC vaginatus funem
No. metretas et nominal sectionem crucis	Crassitudo Insulation	Crassitudo Vagina	Proxime. altiore Diameter	Proxime. pondus	Maximilianus. DC resistentia conductor（20℃）	Vena portandi facultatem
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air (A)	In terra (A)
5X2.5	0.8	1.8	13.3	274	7.41	21	-
5X4	1	1.8	15.6	397	4.61	28	-
5X6	1	1.8	17.1	508	3.08	36	-
5X10	1	1.8	20.4	768	1.83	49	72
5X16	1	1.8	23.4	1095	1.15	66	94
5X25	1.2	1.8	27.9	1589	0.727	84	120
5X35	1.2	1.9	29.7	2091	0.524	100	145
5X50	1.4	2.0	34.6	2818	0.387	125	175
5X70	1.4	2.2	39.2	3873	0.268	160	210
5X95	1.6	2.3	45.2	5275	0.193	195	255
5X120	1.6	2.5	49.3	6567	0.153	235	295
5X150	1.8	2.6	54.8	8222	0.124	260	330
5X185	2	2.8	60.5	10104	0.0991	305	370
5X240	2.2	3.1	68.3	13124	0.0754	360	425
5X300	2.4	3.3	75.5	16342	0.0601	410	480
0,6/1kV-3+1 nucleus aeris conductor PVC insulatas PVC vaginantes funem
No. metretas et nominal sectionem crucis	Crassitudo Insulation	Crassitudo Vagina	Proxime. altiore Diameter	Proxime. pondus	Maximilianus. DC resistentia conductor（20℃）	Vena portandi facultatem
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air (A)	In terra (A)
34+12.5	1.0/0.8	1.8	13.9	500	4.61/7.41	28	-
36+14	1.0/1.0	1.8	15.4	397	3.08/4.61	36	-
310+16	1.0/1.0	1.8	18.0	573	1.83/3.08	49	72
316+110	1.0/1.0	1.8	20.7	827	1.15/1.83	66	94
325+116	1.2/1.0	1.8	24.4	1219	0.727/1.15	84	120
335+116	1.2/1.0	1.8	25.6	1502	0.524/1.15	100	145
350+125	1.4/1.2	1.9	29.8	2042	0.387/0.727	125	175
370+135	1.4/1.2	2.0	33.3	2784	0.268/0.524	160	210
395+150	1.6/1.4	2.1	38.4	3761	0.193/0.387	195	255
3120+170	1.6/1.4	2.2	42.2	4748	0.153/0.268	235	295
3150+170	1.8/1.4	2.4	45.9	5638	0.124/0.268	260	330
3* 185+1*95	2.0/1.6	2.5	51.0	7166	0.0991/0.193	305	370
3240+1120	2.2/1.6	2.7	57.2	9193	0.078/0.153	360	425
3300+1150	2.4/1.8	2.9	63.3	11452	0.0078/0.124	410	480
0,6/1kV-4+1 nucleus aeris conductor PVC insulatas PVC vaginantes funem
No. metretas et nominal sectionem crucis	Crassitudo Insulation	Crassitudo Vagina	Proxime. altiore Diameter	Proxime. pondus	Maximilianus. DC resistentia conductor（20℃）	Vena portandi facultatem
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air (A)	In terra (A)
44+12.5	1.0/0.8	1.8	15.2	365	4.61/7.41	28	-
46+14	1.0/1.0	1.8	16.8	484	3.08/4.61	36	-
410+16	1.0/1.0	1.8	19.7	707	1.83/3.08	49	72
416+110	1.0/1.0	1.8	22.8	1026	1.15/1.83	66	94
425+116	1.2/1.0	1.8	27.0	1505	0.727/1.15	84	120
435+116	1.2/1.0	1.8	28.4	1883	0.524/1.15	100	145
450+125	1.4/1.2	2.0	33.2	2587	0.387/0.727	125	175
470+135	1.4/1.2	2.1	37.3	3525	0.268/0.524	160	210
495+150	1.6/1.4	2.3	43.1	4848	0.193/0.387	195	255
4120+170	1.6/1.4	2.4	47.3	6063	0.153/0.268	235	295
4* 150+1*70	1.8/1.4	2.5	51.6	7224	0.124/0.268	260	330
4* 185+1*95	2.0/1.6	2.7	57.5	9126	0.0991/0.193	305	370
4240+1120	2.2/1.6	3.0	64.5	11778	0.078/0.153	360	425
4300+1150	2.4/1.8	3.2	71.4	14645	0.0078/0.124	410	480
0,6/1kV-3+2 nucleus conductor aeris PVC insulatae PVC vaginatae cables
No. metretas et nominal sectionem crucis	Crassitudo Insulation	Crassitudo Vagina	Proxime. altiore Diameter	Proxime. pondus	Maximilianus. DC resistentia conductor（20℃）	Vena portandi facultatem
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air (A)	In terra (A)
34+22.5	1.0/0.8	1.8	14.7	341	4.61/7.41	28	-
36+24	1.0/1.0	1.8	16.5	461	3.08/4.61	36	-
310+26	1.0/1.0	1.8	19.0	657	1.83/3.08	49	72
316+210	1.0/1.0	1.8	22.2	959	1.15/1.83	66	94
325+216	1.2/1.0	1.8	26.0	1399	0.727/1.15	84	120
335+216	1.2/1.0	1.8	27.0	1680	0.524/1.15	100	145
350+225	1.4/1.2	1.9	32.0	2331	0.387/0.727	125	175
370+235	1.4/1.2	2.0	35.4	3162	0.268/0.524	160	210
395+250	1.6/1.4	2.2	41.0	4318	0.193/0.387	195	255
3120+270	1.6/1.4	2.3	45.3	5498	0.153/0.268	235	295
3150+270	1.8/1.4	2.4	48.5	6379	0.124/0.268	260	330
3* 185+2*95	2.0/1.6	2.6	54.4	8168	0.0991/0.193	305	370
3240+2120	2.2/1.6	2.8	60.7	10462	0.078/0.153	360	425
3300+2150	2.4/1.8	3.0	67.2	12956	0.0078/0.124	410	480

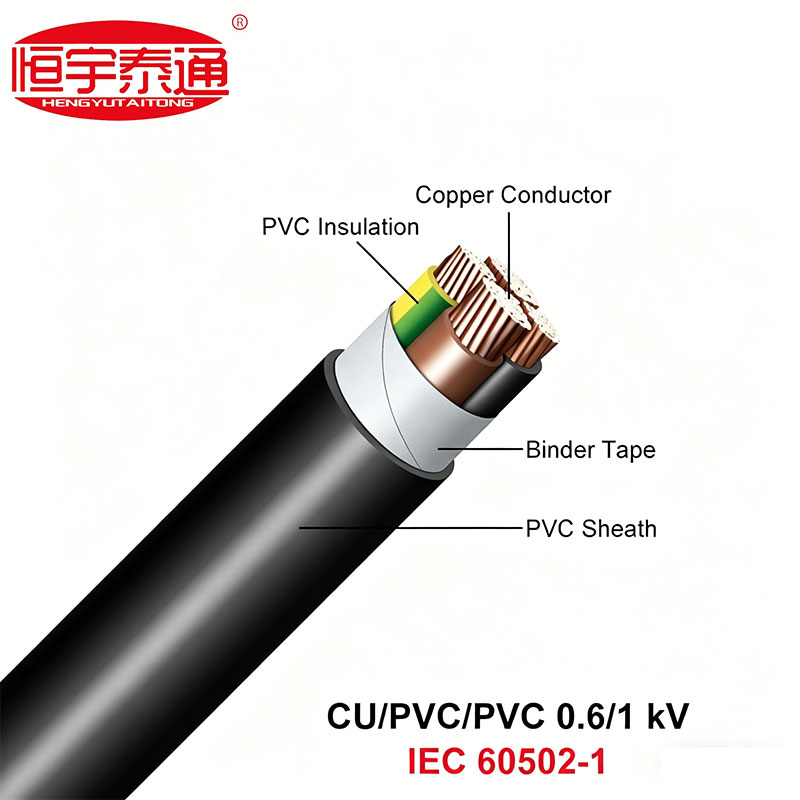

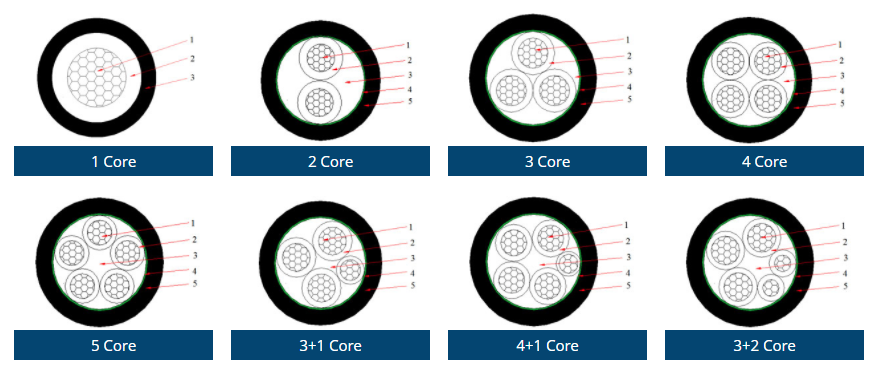

Product Structura:

Conductor (CU): cuprum apertum subneratum, ob flexibilitatem et conductivity typice destitutum, quamquam conductores solidi (Class I) pro minoribus magnitudinibus adhiberi possunt.

Insulatio (PVC): Prima tabula Polyvinyl Chloride (PVC) singula nucleum protegit.

Vagina (PVC): Tegumen PVC ultimam tutelam iaccam contra humorem, oeconomiam, et abrasionem praebet.

Voltage Rating: Ratum pro 600V (phase-ad-terram) et 1000V (phase ad phase).

3.Reference Standard

Key correspondentes signa Internationalis

IEC 60228Conductores

IEC 60502-1Funes potentiae cum insulatione extrusa et accessoriis ad voltages aestimatos ab 1kV(Um=1.2kV) usque ad 35kV(Um=40.5kV) - Pars 1: Cables pro aestimatis voltages 1 kv(Um=1.2kV) et 3 kV(Um=3.6kV)

4.Product Feature et Application

Low voltaged Copper Conductor PVC Insulae Potentiae Cables designatae sunt ad certam institutionem ubi nullum periculum notabile damnum mechanicum est;

Residentialibus et Commercial: systemata interna wiring, aquaeductus, et potestas principalis commeatus motorum HVAC vel elevatoris.

IndustriaePotentia copia motoribus, calces transibit, et tabulas in plantis moderandas.

Infrastructure: electricitatis retia urbana, plateam accendi, ac institutionem in ductus vel cuniculis funem.

Environment: In tectis et usui velit idoneus, et in terra vel in concreto directe poni potest

5.Production Capacitas

Taitong Cable primarium opificem specialiter in magna-scala productione e filis electricae et funibus potentiae summus est. Instructi ad fabricandis et experiundis facultatibus, plenam seriem funiculorum instrumentorum, quae ad severas postulationes global infrastructurae et industriae inceptis occurrant, praebemus.

6.Price Commodum

Taitong magni certaminis pretium praebet pro Conductor Copperum PVC Insulae Potentiae Cables in Minimum voltaged per magnas scalas fabricandis et turpislinea globalis copia catenam. Per venditiones officinas directas levantes, medias personas notas eliminamus, significantes sumptus compendia transeuntes clientibus nostris in sectoribus industrialibus et infrastructuris.

7.Environmental philosophia Taitong cable

Taitong Cable dedicata est fabricandis et suppeditantibus qualis summus, funem eco-amicum productorum, dum ad sustinendum, humilem carbonis industriam ecosystematis proficit. In environmentally- obsequiosas processus productionis stricte sequemur, materiae recyclabiles actuose utimur, et emissiones carbonis et vastum industriae in linea cum signis ISO 14001 continenter reducere.

Nostrum officium est solutiones funes firmas sustinebiles praebere quae proposita global environmentales sustinent et viridem industriam funes transformationem accelerant.
